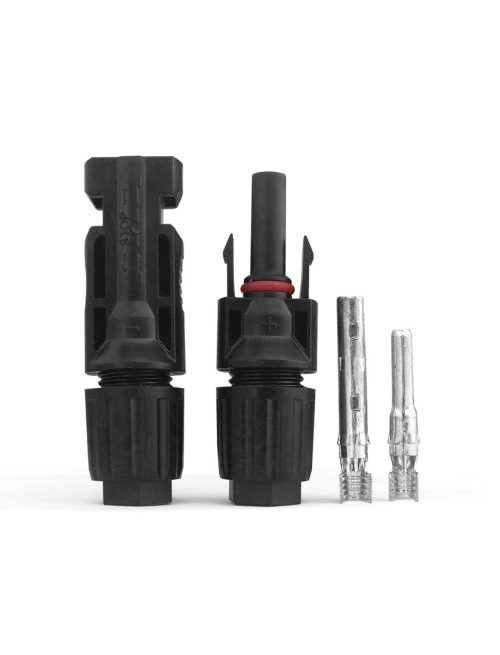

MC4 Connector (6mm)

MC4 Solar Connector is specialized used in Solar PV system between the solar panel and Inverter or controller box

SKU

MC4 Connector (6mm)

Category: Accessories

Description

Insert Material: PPO

Contact Material: Copper, Tin Plated

Rated Current: 5A

Rated Voltage: 1000V(TUV) 600V(UL)

Test Voltage: 8KV(TUV50HZ, 1min)

Contact Resistance: <0.5mΩ

Degree of Protection: IP67

Working Temperature: -40°C to 85°C

Flammability Rating: UL 94-V0

Safety Class: Ⅱ
