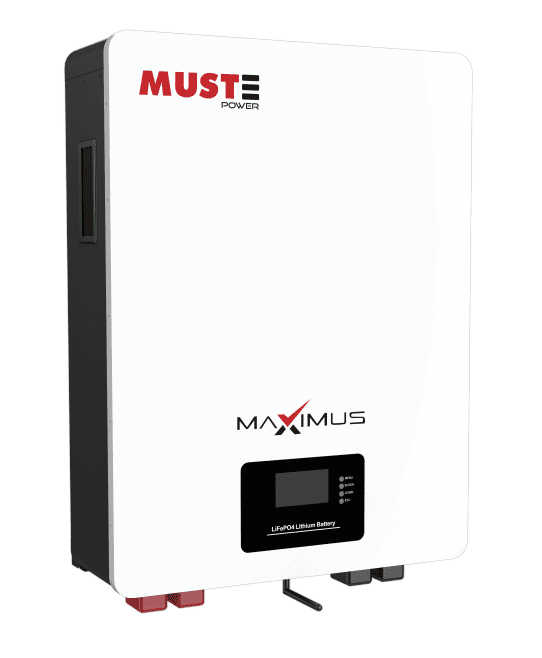

Maximus Series

LITHIUM IRON PHOSPHATE (LIFEPO4) BATTERY

Maximus Series

5.12KWH | WIFI

Maximus Series offers a versatile and reliable power solution. Combine up to 15 units for energy capacities ranging from 2560Wh to 10240Wh. With WiFi Remote Monitoring, stay connected and in control. Whether it’s wall-mounted convenience, stacked-mounting (up to 5 units) for space efficiency or rack-mounted for industrial power management, this series offers seamless adaptability.

  • 3-in-1: Wall-mounted, Stacked-mounted, Rack-mounted(optional)
  • Large capacity, high power output
  • Safest lithium iron phosphate battery cell with high energy density
  • Modular design: supports up to 15 units in parallel
  • IP21 protection for both indoor use
  • Support CAN & RS485 communication with mainstream inverters
  • Local monitoring via LCD monitor
  • Built-in WiFi Smart BMS Module
Category:

Description

TECHNICAL DATA MP-MAXIMUS-48100
Nominal Voltage 51.2V
Nominal Capacity 100Ah
Nominal energy 5120Wh
Life Cycles 6000 cycles @ 80% DOD, 25°C
Recommended Charge Voltage 58.4V
Recommended Charge Current 20A
End Of Discharge Voltage 44V


Standard Method

 Charge 20A
Discharge 50A


Maximum Continuous Current

 Charge 100A
Discharge 100A
Charge 58.4 V (3.65V/Cell)
Discharge 44.0V (2.75V/Cell)


Temperature

 Charge 0 ~ 45°C
Discharge -10 ~ 55°C
Storage Temperature -5~35°C
Shipment voltage ≥51.2V
Module Parallel Up to 15 units
Communication CAN2.0/RS232/RS485
Case Material SPPC
Machine Dimension (H*W*D) (mm) 625.5*442*177


Package Dimension (W*H*D) (mm)

 carton box 688*557*227
wooden box 696*565*335
N.W (kg) 45


G.W (kg)

 carton box 48
wooden box 58

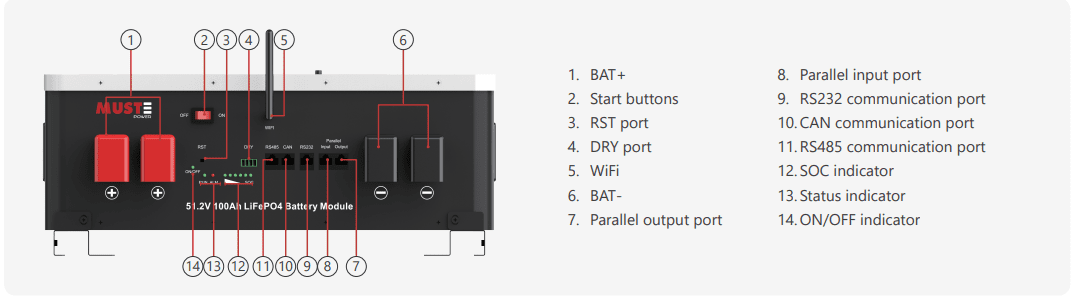

Back panel description

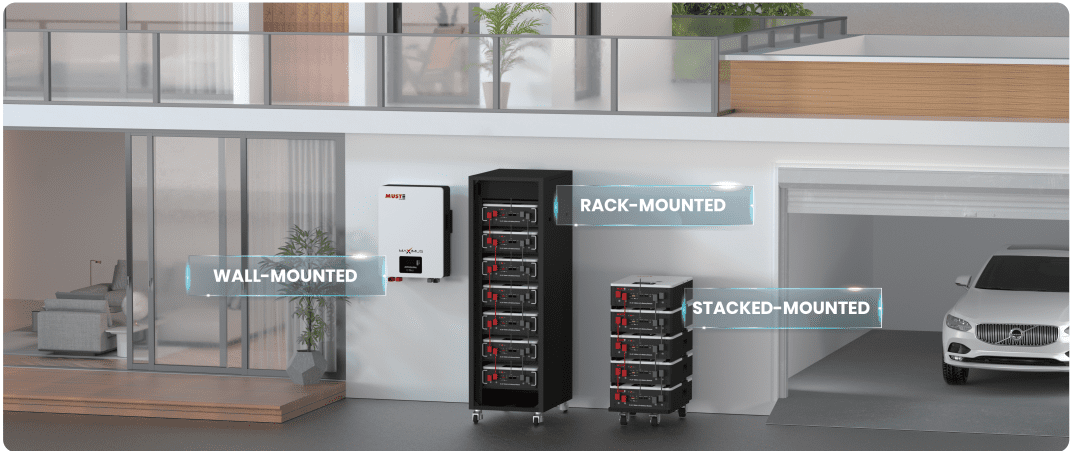

Installation method

* Variations in dimensions and weights may occur due to production batches.



Charge Retention And Capacity Recovery Capability



Standard charge the battery, and then put aside at room temperature for 28d or 55°C for 7d, Charge retention

rate≥90%, Recovery rate of charge≥90


CE-EMC (EN 61000-6-3: 2007+A1: 2011+AC: 2012 EN IEC 61000-6-1: 2019) IEC62619-1:2018; IEC62619:2022; IEC62619:2017; UN38.3/ MSDS
