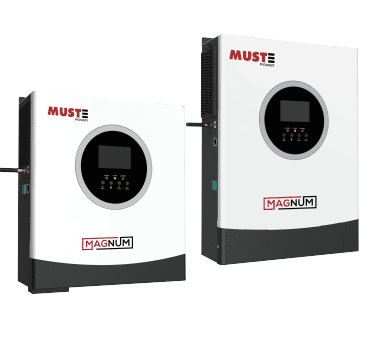

Magnum series

HIGH FREQUENCY SOLAR INVERTER

3.5-5.5KW | Dual output | WiFi

Magnum Series is a multi-function inverter/charger, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support in portable size. Magnum Series can run without battery. The Maximum PV array open circuit voltage can reach 400V/450V. which Can help customers make full use of solar energy. 3.5-5.5KW | Dual output | WiFi
■ Pure sine wave output
■ Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
■ Built-in MPPT solar charge controller

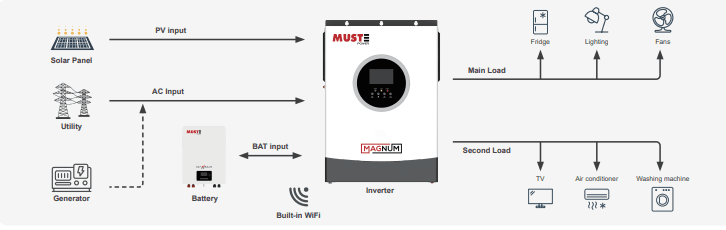

■ Combining solar system, AC utility, and battery power source to supply
continuous power
■ Overload, short circuit and Deep discharge protection
■ Cold start function
■ Support USB, RS485, CAN monitoring function
■
■ PV/ AC activation function
■ BMS communication function (CAN Port)
■ Dual output for smart load management

Category:

Description

MODEL MP-MAGNUM-DUAL 3.5KW MP-MAGNUM-DUAL 5.5KW
Nominal Battery System Voltage 24VDC 48VDC
INVERTER OUTPUT
Rated Power (Main+Second Load) 3500VA/3500W 5500VA/5500W
Surge Power 7000W 11000W
Waveform Pure sine wave
AC Voltage Regulation (Batt.Mode) 230VAC±5%(Setting)
90~93%
Transfer Time 10ms (UPS / VDE4105) / 20ms (APL)
AC INPUT
Voltage 230VAC±5%
Selectable Voltage Range 170~280VAC(UPS) / 90~280VAC(APL) / 184~253VAC(VED4105)
Frequency Range 50Hz / 60Hz(Auto sensing)
BATTERY
Normal voltage 24VDC 48VDC
Floating Charge Voltage 27.4VDC 54.8VDC
Overcharge Protection 30VDC 60VDC
SOLAR CHARGER &AC CHARGER
Maximum PV Array Open Circuit Voltage 450VDC 450VDC
Maximum PV Input Current 18A 28A
Charging Algorithm 3-Step (Flooded Battery, AGM / GEL / LEAD Battery), 4-Step (Li)
Maximum PV Array Power 4200W 6200W
PV Array MPPT Voltage Range(Typ.) 60~360VDC
Maximum Solar Charge Current 100A
Maximum AC Charge Current 60A 100A
Maximum Charge Current 100A
MECHANICAL SPECIFICATIONS
Machine Dimension (W*H*D) 367*318*122.5mm 454*318*122.5mm
Package Dimension (W*H*D) 459*410*200mm 544.5*410*200mm
N.W (kg) 7.2kg 9.0kg
G.W (kg) 8.2kg 10.5kg
OTHER
Humidity 5% to 95% Relative humidity (Non-condensing)
Operating Temperature 0°C~50°C
Storage Temperature -15°C~60°C
CERTIFICATION & STANDARDS

CE-EMC+LVD (EN6100-6-3, EN6100-6-1+EN IEC62109-1, EN IEC62109-2)
